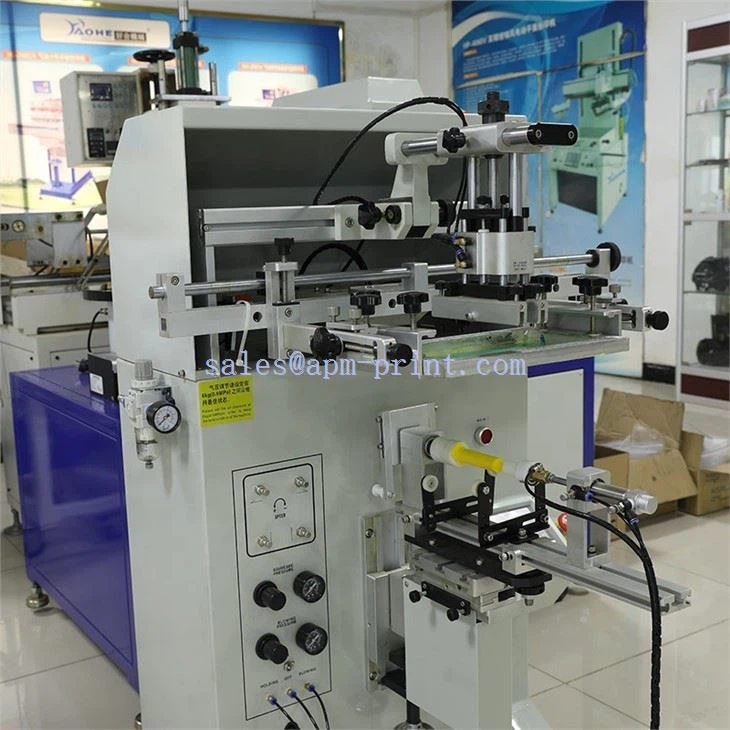

Description
The semi auto screen printing machine is a multifunctional universal machine. It can print on round and flat surface, such as water bottles, cosmetic tubes, aluminum cans and so on.
Application
Used in various cups, bottles, tubes, cans and other containers of round, oval and flat shapes.
Features
1. Pneumatic controlled with shock absorption devices.
2. The semi auto screen printing machine is made of high-quality aluminum alloy, light and sturdy.
3. The printing head lifting device is convenient for screen, squeegee and ink blade. Screen frames are easy to install, remove and clean.
4. X/Y/R worktable, providing front and rear, left and right and skew angle adjustment with high printing accuracy.
5. Squeegee, ink blade, air pressure, printing speed and stroke can be easily adjusted to meet different printing requirements
6. T-slot table makes it easy to change jigs for products of different shapes and height.
7. Convenient foot switch, operated simply, maintained conveniently.
Technical Parameters
Frame Up/Down Stroke: | 100mm (3.94") |
Max. Print Area Round: | 110mm (4.33") Ø 340mm (13.39") Arc Length 200 x 320mm (7.87" x 12.60") |
Working Table Size: | 250 x 350mm (9.84" x 13.78") |
Table Adjustment: | X,Y ± 15mm / θ 15 ° |
Max. Screen Frame Size: | 380 x 580mm (14.96" x 22.83") |
Screen Frame Thickness: | 18 - 25mm (.71" - .98") |
Squeegee Angle: | 0-15° |
Printing Cycle Speed: | 1,200 cycles/hr |
Squeegee Speed: | 20/min |
Squeegee Pressure: | 2 - 4 Bar |
Electric Source: | 110V/220V 50-60Hz 50W |
Air Pressure Input: | 80 psi |
Air Consumption: | 0.7 L/cycle |
Weight: | 150 kg (330.69 lbs) |
Dimensions (L x W x H): | 1,000 x 950 x 1,400mm (39.37" x 37.4" x 55.12") |
Attention
1. Do not use too much water and impurities into the air pressure system to avoid failure.
2. Keep the compressed air dry and clean.
3. When the machine stops working or needs to be moved and repaired, the power supply and gas source must be cut off.
4. The speed regulating valve is a precision component, try to avoid damage.
5. When adjusting or cleaning the oil cup, follow the steps.
6. Enhance awareness of fire prevention and equip with fire-fighting equipment.
